Screening media
Screen mats, meshes and plates for vibrating, flip-flow and drum screens
6 media types
PU, rubber, steel, stainless
Made to size
A drawing or sample panel is enough
Repeat deliveries
Same media, same size, on time
Product range

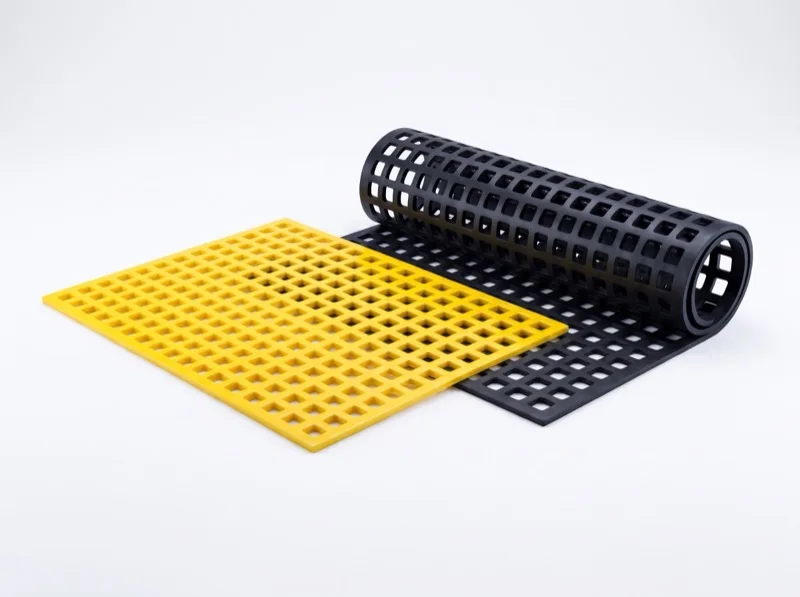

PU and rubber screen mats
Modular panels and tensioned mats for vibrating screens.
Modular: Pin and rail fastening
Tensioned: Length and cross tensioned
Hardness: 45–95 ShA
Apertures: Square, slot, round

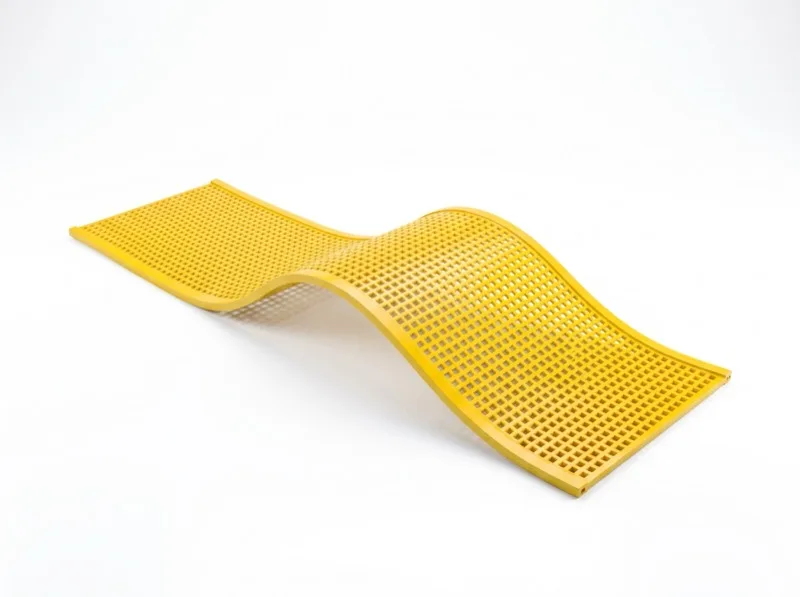

Flip-flow mats
Elastic PU mats for flip-flow screens, for moist and blinding materials.
Applications: SRF, C&D waste, biomass
Fastening: To machine model
Material: Wear-resistant polyurethane
Replacement: Strip by strip

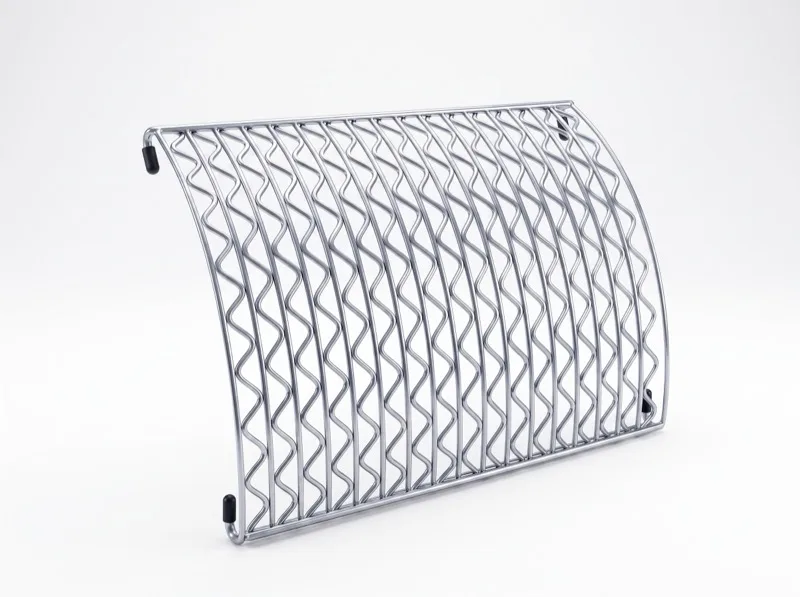

Harp and self-cleaning screens
Non-blinding wire screens for moist and sticky material.
Types: Harp, piano, diamond mesh
Wires: Spring steel
Edges: Hook and rubber profiles
Applications: Gravel, soil, chips, compost

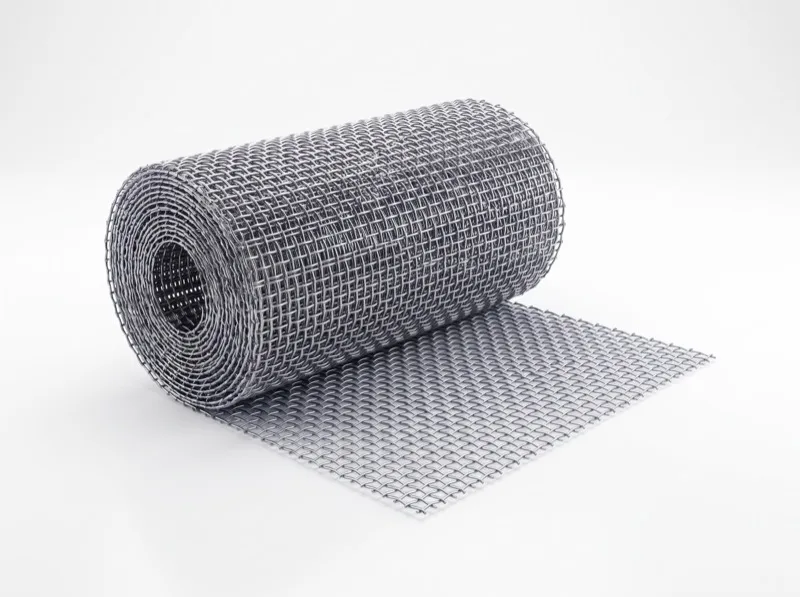

Woven wire screens
Woven steel and stainless screen meshes for vibrating screens and separators.
Materials: Steel, stainless, acid-proof
Apertures: From 0.04 mm
Edges: Hook edges, frames
Delivery: Made to size

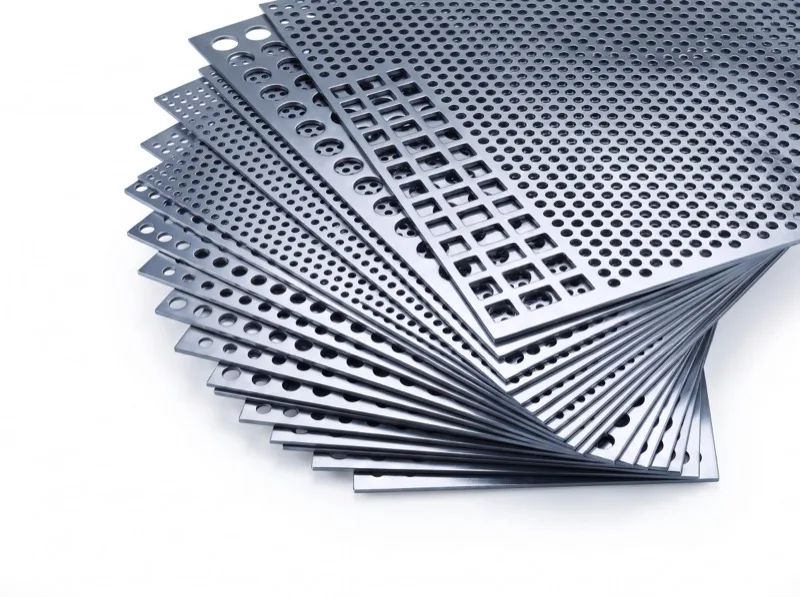

Perforated plates and drum segments
Perforated screen plates for flat decks and curved segments for drum screens.
Holes: Round, square, slot
Plates: Steel, stainless, wear-resistant
Drums: Curved segments
Manufacture: To drawing

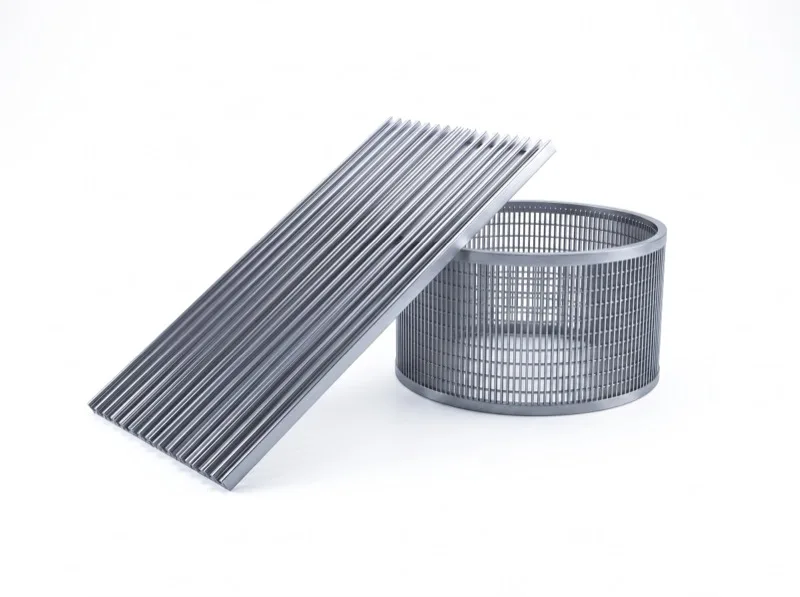

Wedge wire screens and baskets
Wedge wire panels, drums and screen baskets for wet screening and dewatering.
Slots: From 0.02 mm
Panels: Sieve bends, bar screens
Baskets: Screw presses, centrifuges
Material: Stainless, acid-proof
Technical specifications
Applications
Recycling and waste processing
Composting and biomass
Aggregates and mining
Pulp and paper
Food industry
Water treatment
Key benefits
6
All media from one supplier
Mats, meshes, plates and baskets in one order.
SIZE
Made to size or sample
An old panel or a drawing is enough for manufacture.
REPEAT
Repeat deliveries
Same size and material, order after order.
Compatibility
We supply screening media for screening machines from manufacturers such as:
ALLGAIER
BINDER+CO
DOPPSTADT
GKM
IFE
KOMPTECH
METSO
MOGENSEN
NEUENHAUSER
RUSSELL FINEX
SANDVIK
SPALECK
SWECO
TERRA SELECT
